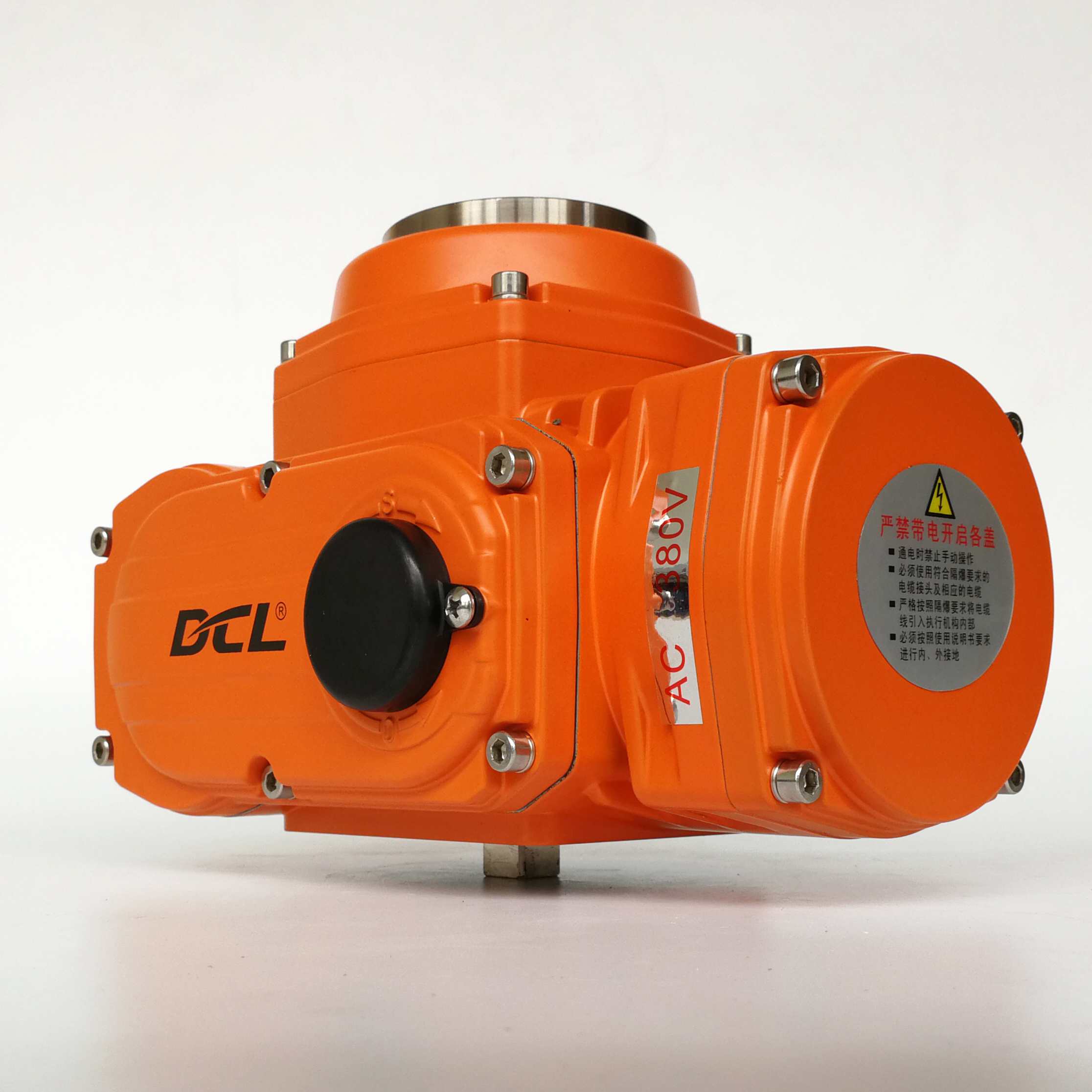

CSA Over torque protection 600Nm AC380V Explosion Proof Electric Actuator

• Quarter turn operation with mechanical limits
• Heavy duty motor with thermal overload protection
• Rugged IP68/NEMA 4X aluminum alloy housing with powder coating
• Explosion proof grade ExdIICT4 for Zone system and Group C, D T4 for Division system
• Over torque protection is available
• Anti-condensation heater is optional
• Standard ISO5211 direct installation
• Manual override with Allen wrench or handwheel
• CSA certification

DCL Explosion-Proof Electric Actuators feature an optional integrated over-torque protection system. Built with high-grade, German-engineered disc springs—renowned for their exceptional fatigue resistance and minimal deformation—this system ensures that over-torque settings remain stable and drift-free, even after millions of cycles.

Engineered for the vast majority of explosive gas environments (excluding underground mining), these actuators incorporate highly secure, flameproof motors and electronics. Every mating surface undergoes rigorous precision machining and inspection to guarantee that flame paths strictly contain any internal sparks. Furthermore, the aluminum enclosures are manufactured using high-tonnage die-casting equipment. This creates a highly dense grain structure, enabling the housing to withstand significantly higher internal explosion pressures than standard actuators.

Fully CSA certified to UL and CSA standards, these units comply with both Zone and Division classification systems for hazardous locations.
