On Off Type aluminium alloy CSA IP68 600Nm Explosion Proof Valve Actuator

مكان المنشأ ووهان ، الصين
اسم العلامة التجارية DCL
إصدار الشهادات CE/ROHS/CSA/IP68/IECEx/ATEX/UL
رقم الموديل DCL-EX05C/EX10C/EX20C/EX40C/EX60C
الحد الأدنى لكمية 1pc
تفاصيل التغليف كرتون/البليت
وقت التسليم 7 أيام عمل
شروط الدفع د / ف، / تي تي، ويسترن يونيون، موني جرام
القدرة على العرض 2000pcs/شهر

اتصل بي للحصول على عينات مجانية وكوبونات.

ال WhatsApp:0086 18588475571

ويتشات: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
عزم الدوران القياسي 50nm إلى 600nm الوقت القياسي 20s إلى 45s
درجات إثبات الانفجار exdiict4 درجة الحماية IP68 NEMA 4X
إجمالي الوزن من 3 كجم إلى 10 كجم قوة المحرك 6W إلى 90W
درجة الحرارة المحيطة -25 ℃ ~+55 ℃ / -13 ° F ~+131 ° f زاوية التثبيت 360 درجة
مزود الطاقة 24VAC/110VAV/220VAC/380VAC/24VDC
اترك رسالة
منتوج وصف

Rugged IP68 1000Ω SIL3 Explosion Proof Valve Actuator 50Nm-600Nm On Off Type



Features:

  • 360° operation up to DN40&1 1/2” ball valves
  • Quarter turn operation from DN40&1 1/2” ball valve to DN150&6” ball valves
  • Suitable for 2-way and 3-way bronze ball valves, stainless ball valves, carbon steel ball valves
  • Heavy duty motor with high start torque and small inertia force, thermal overload protected
  • Self-locking all metal gear train with all bronze alloy worm gear
  • ExdIICT4 grade for ATEX and Class 1 Zone 1, Group C, D T4 grade for Class 1 Division 1
  • Stainless steel visual valve position indicator
  • Standard ISO5211 multi flange mounting
  • ATEX and SIL 3 certified/CSA testing per UL and CSA standard
  • Optional functions such as modbus,fail-safe return and so on


Description

DCL explosion-proof electric actuators are widely used for automating quarter-turn ball valves in explosive environments such as oil & gas, chemical, petroleum, and winery industries. Regardless of the sealing material or ball notch type, DCL actuators deliver high stalling torque to ensure a tight, leak-free seal. Their stable operating speed also enables smooth and precise flow control, especially when driving V-notch ball valves.

For special applications where the valve rotation angle is less than 100° or requires an intermediate position, the actuator can be easily configured to meet specific control requirements.

In cases where the ball valve does not conform to ISO 5211 mounting standards, DCL can provide custom-designed valve brackets to accommodate various connection interfaces, ensuring perfect mechanical compatibility.


Specification:


Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-Ex05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 3.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex10 30S/100Nm 15S/50Nm 60S/100Nm 0~90°Adjustable 5.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 5.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex40 30S/400Nm 15S/200Nm 60S/400Nm 0~90°Adjustable 9.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex60 45S/600Nm
0~90°Adjustable 10Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
Actuator Type Butterfly Valve(PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-Ex05 DN50~65 DN40 DN50~80
DCL-Ex10 DN80~100 DN50~65 DN100~200
DCL-Ex20 DN125~150 DN80~100 DN250~300
DCL-Ex40 DN200 DN125 DN350~450
DCL-Ex60 DN250 DN150 DN500~600

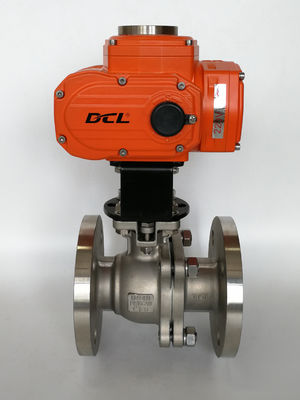

On Off Type  aluminium alloy CSA  IP68 600Nm Explosion Proof Valve Actuator 0On Off Type  aluminium alloy CSA  IP68 600Nm Explosion Proof Valve Actuator 1On Off Type  aluminium alloy CSA  IP68 600Nm Explosion Proof Valve Actuator 2
